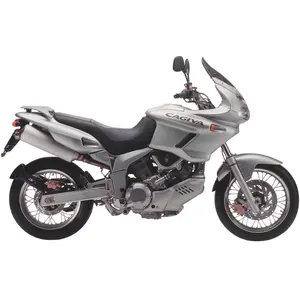

Spare parts and accessories for CAGIVA NAVIGATOR 1000 - M500AA

My Bike
NAVIGATOR 1000
2000 - 2005
Find another bike
Specifications *
Engine size:
996
Cylinders:
2
hp/kW:
99/73
Vehicle weight (kg):
222
Seat height (mm):
850
Valve clearance (intake):
0,10-0,20 MM KALT
Valve clearance (exhaust):
0,20-0,30 MM KALT
Carburettor air screw:
EINSPRITZUNG
Tyre pressure (front):
2,2 (2,4) BAR
Tyre pressure (rear):
2,4 (2,6) BAR
Spark plug 1:
NGK CR8EK
Spark plug 2:
NGK CR8EIX
Electrode gap:
0,7 MM
Fork tube diam.:
45 MM TELEGABEL
Front/rear sprockets:
16/41 ZÄHNE
Chain/Final drive:
108 GLIEDER
Capacities *
Fork oil per rod:
680 ML SAE 7,5W
Engine oil w/o filter:
3,1 L SAE 10W-40
Engine oil with filter:
3,3 L MIN. API SF
Brake fluid:
DOT 4
Fuel:
20,0 LITER
Coolant:
2,0 LITER
* We acquire the data with care, but without any guarantee
Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

What's the used value for this Bike? Find used value via DAT GmbH

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form
